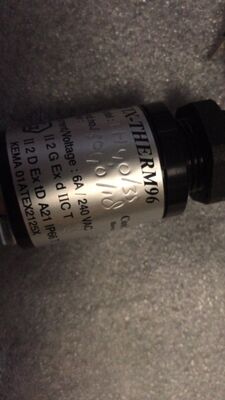

CONDOR FIX THERM INLINE EX THERMOSTAT IL-*/* EXPLOSION PROOF THERMOSTAT

Description

1 Application

The FixTherm Inline Thermostats are often used as maximum thermostat in instrumentation cabinets with space-heating, to protect the equipment from overheating.Prevention of overheating Temperature protection

2 Features and Advantages

• Setpoints up to 60°C
  Accurate set-point (± 3°C)
  Small hysteresis
  Suitable for T6 classification
  Can be used for 6A / 240 VAC/DC

3 Remarks

• The housing is made from covered aluminium.
  When required in applications it is normal practice to use our Space-heaters and Direct-heaters in combination with this FixTherm Inline Thermostat(range from 10°C up to 60°C).

4 Range

• IL-10/5 – going up with 5°C setpoints e.g. 10/5 – 15/10 – 20/15 etc. up to 60°C maximum.

5 Technical data

Housing Aluminium covered with heat-shrink tube
Current / voltage 6A / 240 VAC
Cable 3x 1 sqmm
Material cable silicone cable, outer diam. ca. 7.4 mm
Standard length ca. 1 mtr
Other lengths on request
Overall dimensions o.d. ca. 25 mm x 44 mm length
Weight ca. 30 g.
Switch SPST
Set-point tolerance +/- 3°C
Hysteresis ca. 2°C
Ambient temp. range -55 °C … + 65 °C
EX protection class ATEX 2 II G Ex mb IIC T6 Gb, 2 II D Ex mb IIIC T85°C Db;
IECEx Ex mb IIC T6 Gb, Ex mb IIIC T85°C Db
Certification DEKRA 13ATEX0176 and IECEx DEK 13.0062
